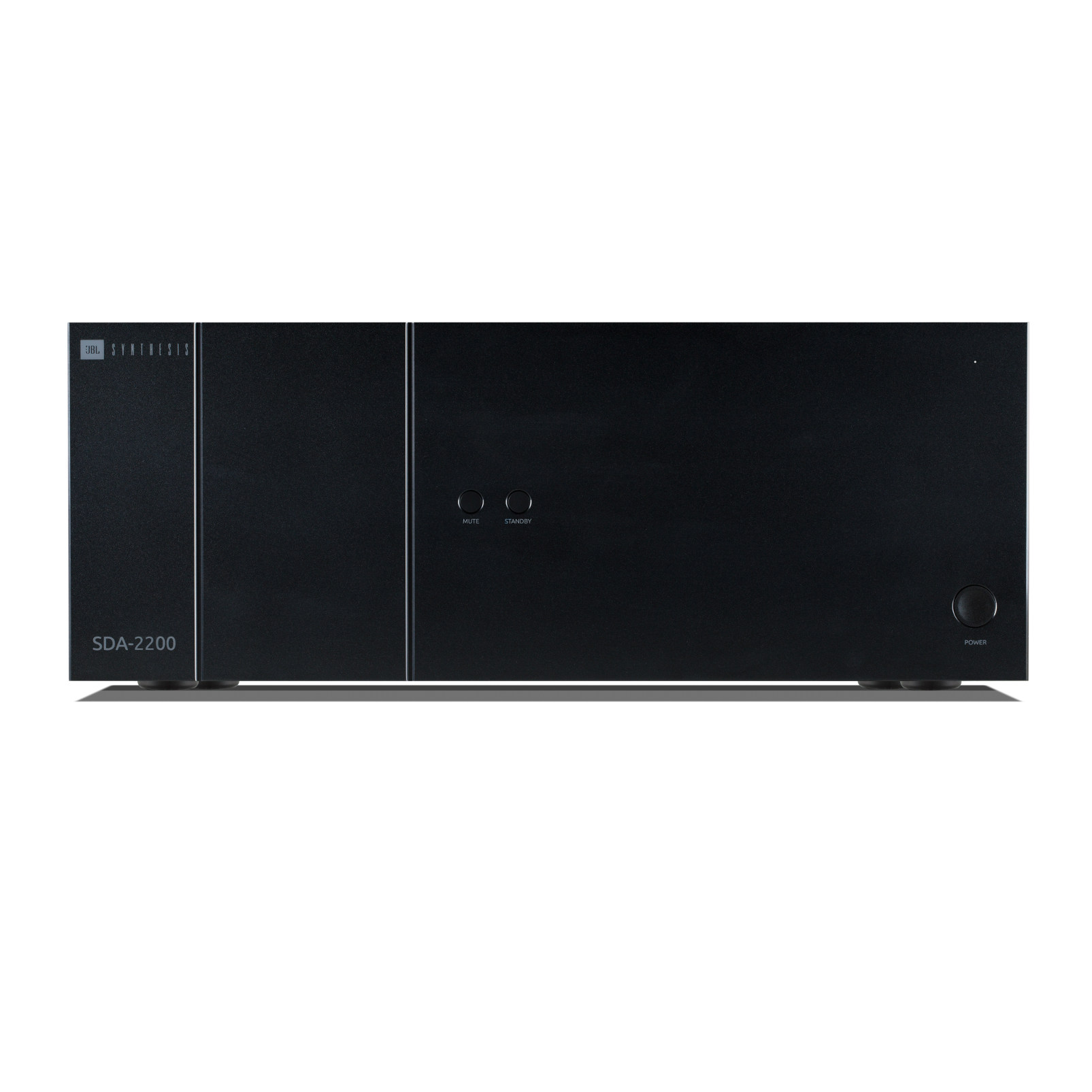

SDA 2200

SDA 2200


2-Channel Class G Amplifier

SDA 2200

2-Channel Class G Amplifier

The JBL Synthesis SDA-2200 delivers two channels of dynamic class G amplification with modern network capability, audiophile sound and exceptional flexibility.

The JBL Synthesis SDA-2200 delivers two channels of dynamic Class G amplification with modern network capability, audiophile sound and exceptional flexibility. With 200 WPC @ 8Ω, 400W WPC @ 4Ω and bridgeable for 1100 watts at 4 Ω, and class A operation to ~50W and 0.001% harmonic distortion, the SDA-2200 offers outstanding power and fidelity. Balanced and single ended inputs, RS232 and IP control as well Dante™ audio networking, make the SDA-2200 is a superb choice for a broad range of applications.

  • Highlight & Specs
  • Manuals & Downloads

    Features

    Dynamic Class G Amplification

    DanteTM Audio Networking

    200 Watts @ 8 Ohms, 1100 Watts Bridged @ 4 Ohms

    Balanced and Single-ended Outputs

    Trigger In and Out

    Ethernet, RS232 Control


    Specifications

    Two channels driven, 4Ω / 8Ω,20Hz – 20kHz: 380W / 225W

    One channel driven, 8Ω bridged mode,20 – 20kHz: 790W

    Harmonic distortion, 80% power,8Ω at 1kHz: 0.001%

    Input sensitivity 200W / 8Ω: 1.15V RMS (RCA Type), 2.3V RMS (XLR Type)

    Signal/Noise ratio (A-wtd) 50W / 8Ω: 110dB

    Input impedance: 10kΩ

    Frequency response: 20 – 20kHz +/-0.05dB

    Mains voltage: 110–120V or 220–240V, 50–60Hz
    Maximum power consumption: 1.5kW

    Dimensions W x H x D (including feet, control knob and speaker terminals):433 x 425 x 177mm

    Weight (net): 18kg

Manuals & Downloads

The latest owner's manuals, quick start guides, and documents.
